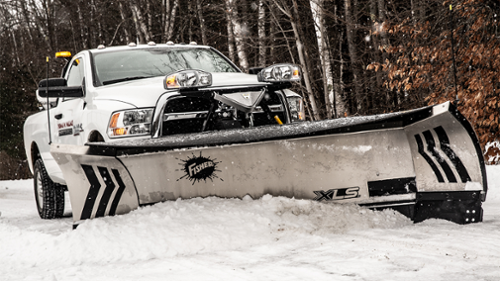

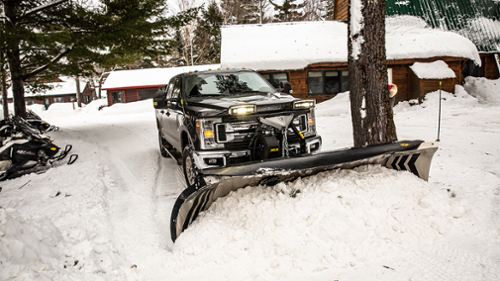

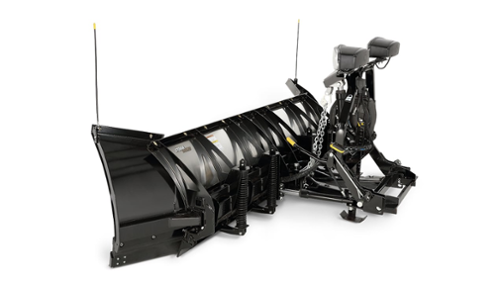

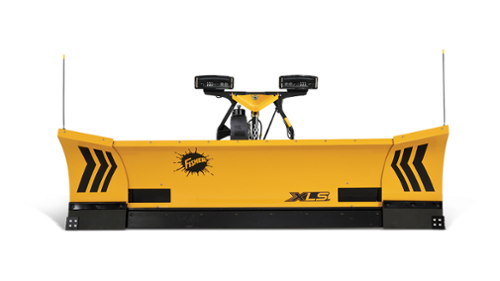

XLS Expandable Winged Plow

FIS-XLS
Request a Quote

About this item

When winter strikes hard, the XLS™ delivers next-level versatility and productivity. The only expandable wing plow with independent wing control and trip-edge protection, it’s built to carry more snow and tackle bigger jobs—whether clearing windrows, scooping, or making straight passes.

Available In: Atlantic Canada & Winnipeg

KEY FEATURES

Independent Wing Control
Easily adjust each wing to suit your work—retracted, expanded, windrow, or scoop mode—all at the push of a button.

Trip-Edge Protection
Each wing has independent trip-edge springs for obstacle clearance—without dumping snow or damaging your plow.

Robust Blade Construction
31″‑tall, 14-gauge moldboard available in stainless or powder-coated steel, with a 6″ high‑carbon cutting edge for superior strength and wear resistance.

Heavy-Duty Slide Box & Structure
Built with a heavy-duty torque tube, ten vertical ribs, and a reinforced 3/16″ steel slide box—designed to handle extreme plowing tasks without buckling.

Flared Wings (up to 36″)
Tall flared wings boost plowing capacity and project snow further. Wings extend/retract hydraulically for flexible operation.

Reliable Integrated Hydraulics
Our hydraulic system is designed and built in-house, fully enclosed for durability and fast blade movement.

Ready to enhance your fleet with maximum capability and efficiency? Contact us or visit your Atlantic or Winnipeg Parts for Trucks branch to get the XLS™ plow on your rig this season!

XLS_Install_Instructions
XLS_Install_Instructions.pdf
XLS_Owners_Manual
XLS_Owners_Manual.pdf
XLS_Parts_List
XLS_Parts_List.pdf
Size 8' - 11'
Moldboard Options Stainless or Powder-Coated Steel
Blade Type Adjustable Winged Blade
Vehicle Compatibility Truck Class 2–6 & Tractors
Approx. Weight (No Mount) 1,078 - 1140 lbs
Retracted Blade Width 8' - 8' 6"
Extended Blade Width 10' - 11'
Blade Height (Centre) 31"
Blade Height (Ends) 35" - 36"
Blade Thickness 14 ga
Trip Springs 4
Vertical Ribs 10
Lift Cylinder 1¾″ × 10″
Angling Rams 1½″ × 10″
Blade Cutting Edge ½″ × 6″ Steel (Standard)
Wing Cutting Edge 1½″ × 9″ Poly (Standard)
Mount Type Minute Mount 2
